Die Cutting

Applications

Labels
Gaskets
Seals
Shields
Pads
Insulators

Materials

PORON®
Nomex® and Formex®
Natural and synthetic rubber
Plastic and vinyl
Valox® and Lexan®
UL and FR materials
Mylar® and Kapton®
Thermoplastic rubber
Silicone rubber
Neoprene
Melinex films
Woven/non-woven fabrics
EMI/RFI Shielding
Fluoroelastomers
Nylon® and Teflon®
Closed and open cell sponge
Fiber and phenolic materials
Foam materials
Tapes and foils
VHB Adhesives
Adhesive Backed Materials

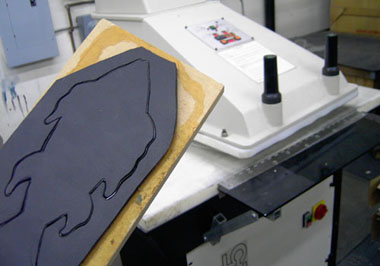

Die cutter

Tolerances

± 0.05 mm (.002") to ± 0.2 mm (.008") tolerances
Avoid lines cut closer than 0.5 mm (.020") to each other
Smallest hole: 0.5 mm (.020")
Hole from edge of part: 0.5 mm (.020")
Typical minimum radius corner: 0.2 mm (.008")

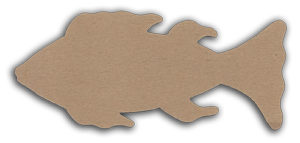

die cut fish
